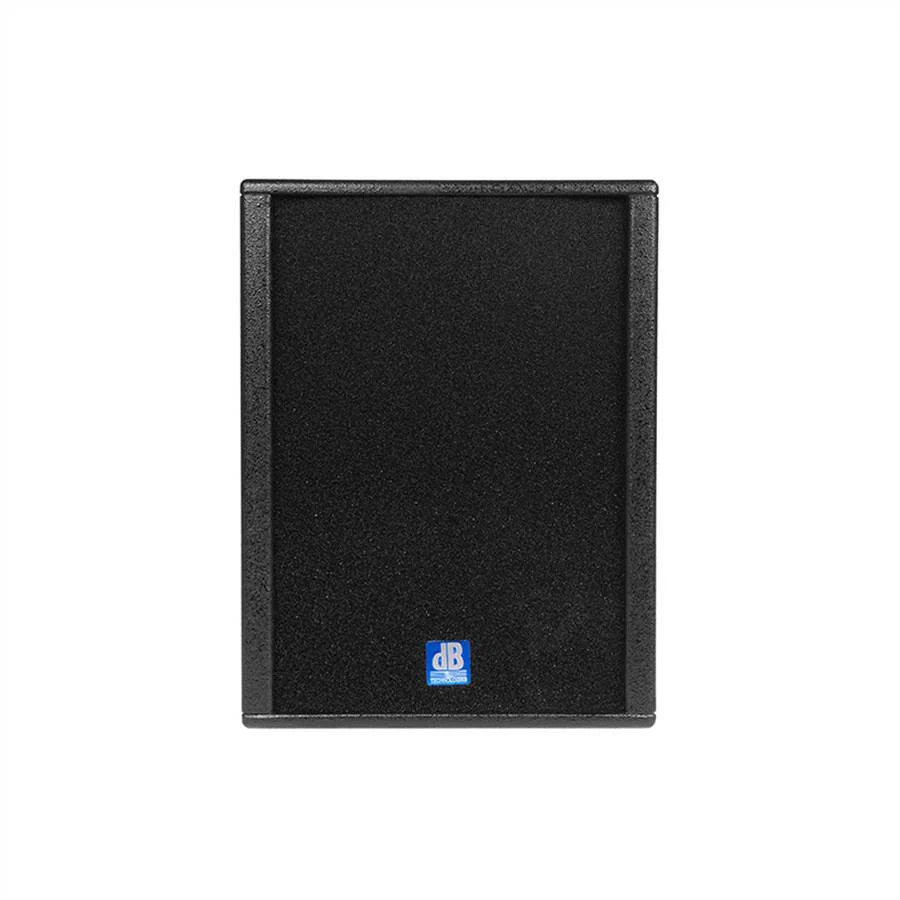

dB Technologies Arena SW 15

The ARENA SW15 offers a 15" woofer with a 3" voice coil which can take a load up to 1000 watt putting out an extraordinary SPL of 130dB at very powerful low end frequencies.

It can be easily combined with ARENA10 and ARENA12 high/mid units, due to the internal passive crossover.

Also possible is bi-amp operation using an external crossover unit.

Technical Specifications:

• Speaker Type : Passive Subwoofer
• Acoustical data
• Nominal Power Rating : 500 W/RMS
• Program Power Rating : 1000 W
• Impedance : 8 Ohms
• Frequency Response [+/- 3dB] : 40 - 150 Hz
• Max SPL : 130 dB
• LF : 15 “
• Voice Coil LF : 3 “
• Internal Crossover : YES
• Crossover Frequency (passive) : 150 Hz
• Amplifier
• Processor
• Input :
• Signal Input : 1x Speakon (Pin 1+=+) (Pin 1-=-)
• Signal Output : 1x Speakon (Pin 1+=+) (Pin 1-=-)
• Mechanics :
• Housing : Multiplex birch plywood
• Width : 460 mm (18.4 in)
• Height : 600 mm (24 in)
• Depth : 600 mm (24 in)
• Weight : 34 kg (74.96 lbs)
