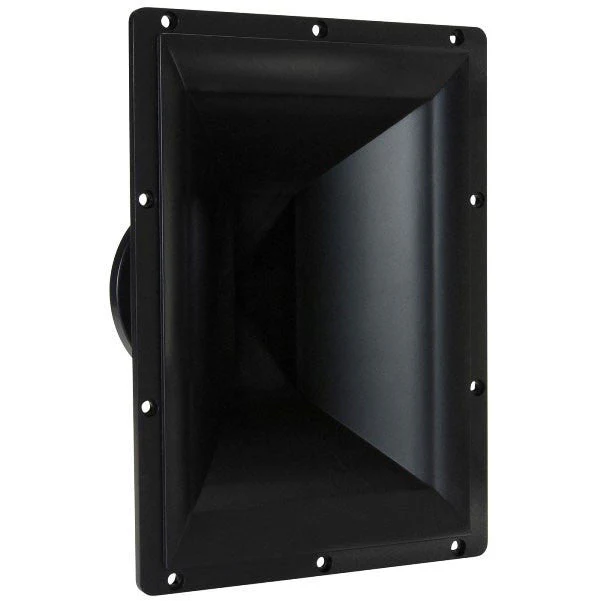

BAJAAO 7inch x 10inch Horn Tweeter with 1inch Titanium Compression Driver

BAJAAO 7" x 10" Horn Tweeter with 1" Titanium Compression Driver

\r\n

This horn and driver combination was developed for use in a famous manufacturer's THX Ultra2 dual 6-1/2" 2-way loudspeaker system. The reinforced plastic horn's advanced Tractrix geometry ensures controlled dispersion combined with an absolute minimum of distortion.

High efficiency and smooth response required for THX Ultra2 certification is provided by the pre-mounted 4-ohm titanium diaphragm compression driver, which features a 9.6 oz. ceramic magnet incorporated into an optimized motor structure. The fluid-cooled magnet system is shielded to prevent harmful interaction with sensitive equipment. Vertical orientation of the horn's long axis is recommended for optimum horizontal dispersion.

BAJAAO 7" x 10" Horn Tweeter Features:

• Famous makers THX Ultra2-spec HF transducer
• 90° x 60° Tractrix horn design provides even coverage and low distortion
• Titanium diaphragm for durability and crisp, clean response
• Ferrofluid cooled voice coil increases power handling
• Shielded 9.6 oz. ceramic magnet.

BAJAAO 7" x 10" Horn Tweeter Specifications:

• Power handling: 20 watts RMS/40 watts max
• VCdia: 1"
\r\n
• Le (@ 10 kHz): 0.05 mH
\r\n
• Impedance: 4 ohms
\r\n
• Re: 2.94 ohms
\r\n
• Frequency response: 4,000-22,000 Hz
\r\n
• Fs: 2,800 Hz
\r\n
• Recommended crossover: 4,000 Hz @ 12 dB/octave
\r\n
• SPL: 99 dB 1W/1m
\r\n
• Dimensions: 10-11/16" H x 7-1/2" W x 7" D
• Cutout dimensions: 9-1/2" H x 6-1/4" W.

Made in India
