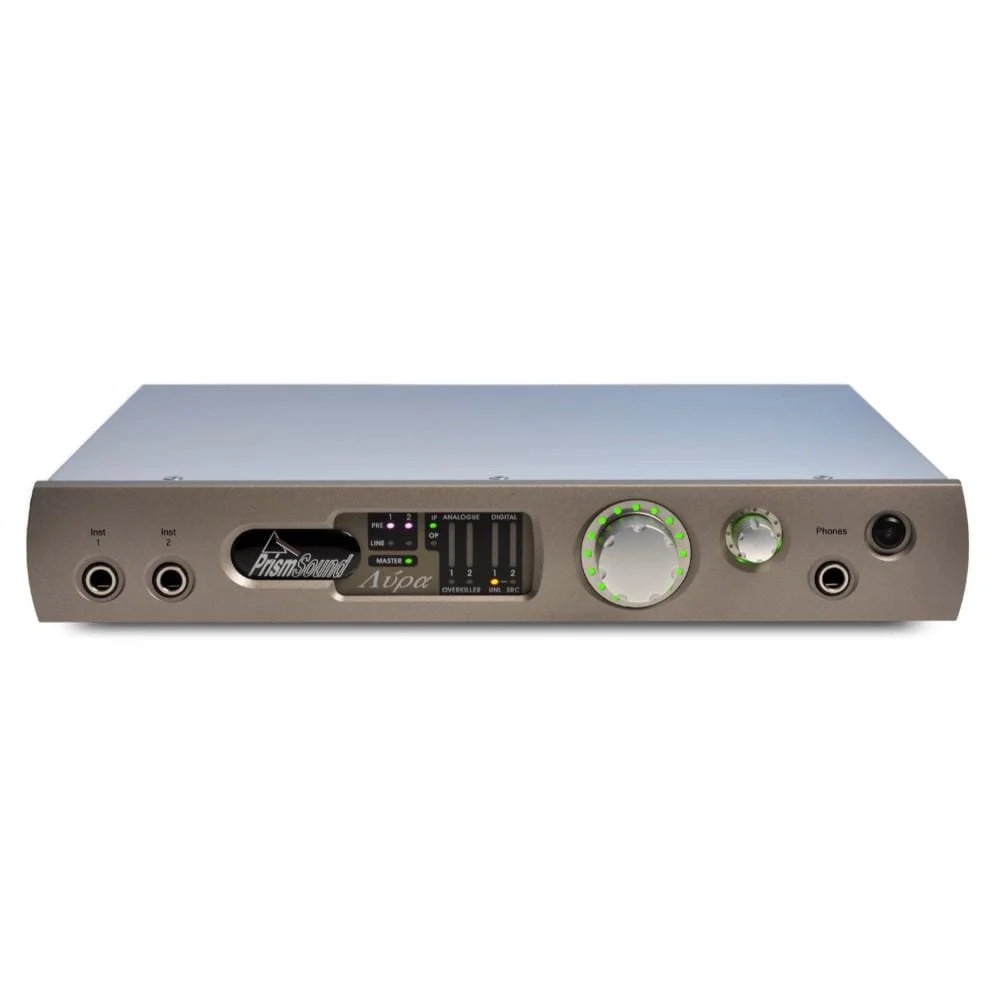

Prism Sound Lyra 2 Reference Grade Compact Audio Interface Overview:
Lyra represents the pinnacle of compact audio interfaces. Packing Prism Sounds trusted, uncompromising AD/DA conversion into a compact chassis perfect for use in the studio or on the road.
Based on the Orpheus’ audio path and clock circuitry, Lyra is ideal for those who don’t require a large I/O count, but do demand the highest quality and most transparent AD/DA available.
RENOWNED AD/DA CONVERSION
Lyra cuts no corners in its design and boasts the same trusted Prism Sound convertors used on countless hit records. It’s ultra-transparent characteristic means what you put into the Lyra is exactly what you get out of it.
PRISTINE PRE-AMPLIFICATION
Featuring a single class-A microphone preamp, Lyra 2 guarantees superbly clean, detailed recordings that capture a performance the way it was intended.
SOFT-CLIP LIMITING (OVERKILLER)
Lyra's analogue input channels include a switchable Prism Sound 'Overkiller' circuit. This soft-clip limiter gently absorbs transients and allows signal levels to be pushed to their limits without risk.
QUALITY SUPPORT
Prism Sound's reputation for audio excellence has been matched only by its top quality after-sales support and technical advice. The longevity of a Prism Sound product is a testament to the dedicated team behind it.
Features:
- 2 A/D Analogue Input Channels
- 4 D/A Analogue Line Output Channels
- S/PDIF / ADAT Digital In/Out
- AES3 Mode on RCA/Phono
- Word-clock Sync I/O
Specifications:
DIMENSIONS
- 1U 19inch rack mountable 2/3 width (rack ears available as an option)
- Table top (inc feet): W: 285mm D: 242mm H: 50mm
- Rack-mount (inc ears):
- W: 483mm D: 242mm H: 44.5mm
POWER
- 90-250VAC, 50/60Hz internal power supply
- IEC 6A connector
- 15W 0.5A(T) 20mm ceramic fuse
INPUTS
- 2 x XLR sockets
- 2 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 1 x TOSLINK for S/PDIF or ADAT Optical input
OUTPUTS
- 2 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 4 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 1 x TOSLINK for S/PDIF or ADAT Optical output
Made in UK
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Prism Sound Lyra 2 Reference Grade Compact Audio Interface Overview:
Lyra represents the pinnacle of compact audio interfaces. Packing Prism Sounds trusted, uncompromising AD/DA conversion into a compact chassis perfect for use in the studio or on the road.
Based on the Orpheus’ audio path and clock circuitry, Lyra is ideal for those who don’t require a large I/O count, but do demand the highest quality and most transparent AD/DA available.
RENOWNED AD/DA CONVERSION
Lyra cuts no corners in its design and boasts the same trusted Prism Sound convertors used on countless hit records. It’s ultra-transparent characteristic means what you put into the Lyra is exactly what you get out of it.
PRISTINE PRE-AMPLIFICATION
Featuring a single class-A microphone preamp, Lyra 2 guarantees superbly clean, detailed recordings that capture a performance the way it was intended.
SOFT-CLIP LIMITING (OVERKILLER)
Lyra's analogue input channels include a switchable Prism Sound 'Overkiller' circuit. This soft-clip limiter gently absorbs transients and allows signal levels to be pushed to their limits without risk.
QUALITY SUPPORT
Prism Sound's reputation for audio excellence has been matched only by its top quality after-sales support and technical advice. The longevity of a Prism Sound product is a testament to the dedicated team behind it.
Features:
- 2 A/D Analogue Input Channels
- 4 D/A Analogue Line Output Channels
- S/PDIF / ADAT Digital In/Out
- AES3 Mode on RCA/Phono
- Word-clock Sync I/O
Specifications:
DIMENSIONS
- 1U 19inch rack mountable 2/3 width (rack ears available as an option)
- Table top (inc feet): W: 285mm D: 242mm H: 50mm
- Rack-mount (inc ears):
- W: 483mm D: 242mm H: 44.5mm
POWER
- 90-250VAC, 50/60Hz internal power supply
- IEC 6A connector
- 15W 0.5A(T) 20mm ceramic fuse
INPUTS
- 2 x XLR sockets
- 2 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 1 x TOSLINK for S/PDIF or ADAT Optical input
OUTPUTS
- 2 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 4 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 1 x TOSLINK for S/PDIF or ADAT Optical output
Made in UK
