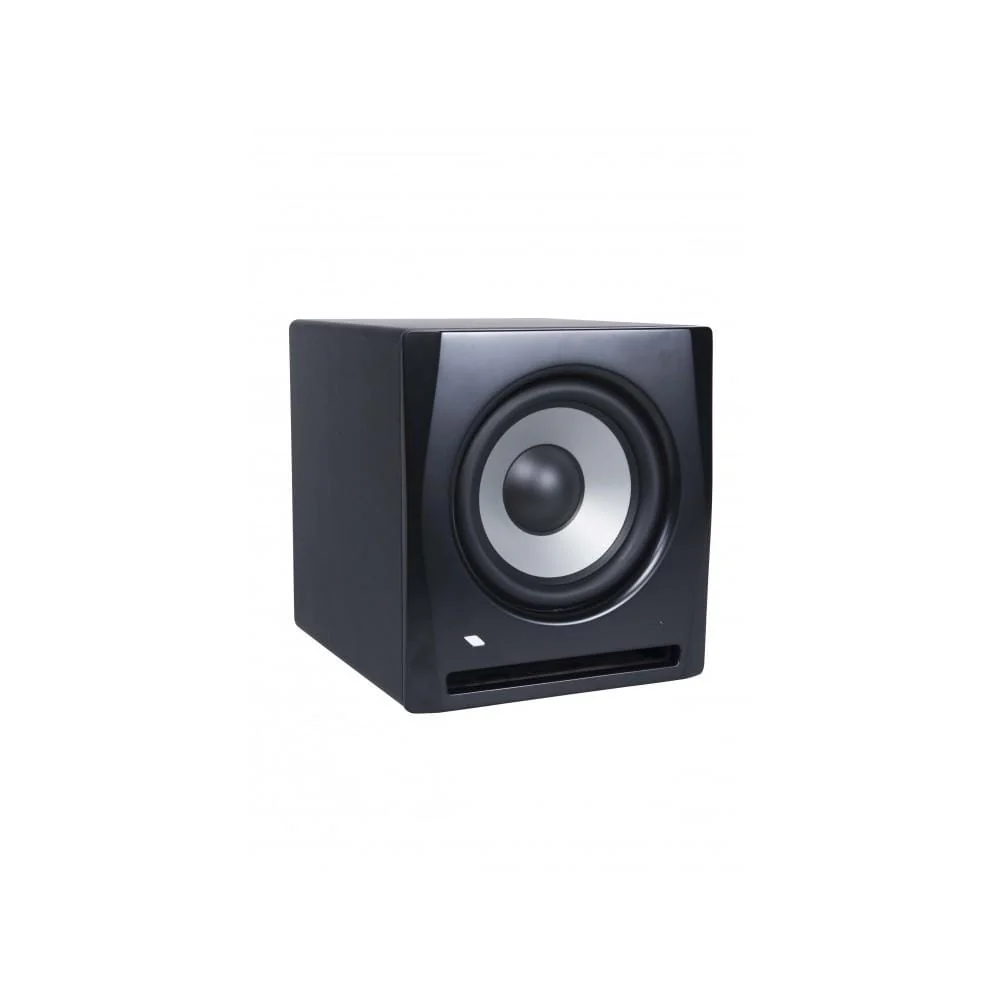

Proel EK10SW Studio Vented Subwoofer

Proel EK10SW Studio Vented Subwoofer Overview:

Features:

• Active vented sub-woofer
• Long-excursion 10” woofer with PP cone featuring very extended response
• Precisely calculated front tuning port for greater low-frequency extension
• Stereo balanced inputs, outputs and link connectors for MONO and STEREO operation
• Optimized crossover design with HI-CUT and LO-CUT frequency control
• High-headroom Class AB 150W amplifier with accurate CLIP LIMITER

Specifications:

• Low Frequency Device: 10” woofer with PP cone
• LF Amplifier Continuous Power: 150W Class AB
• Processing: Analog
• Frequency Response: 40 Hz - 150 Hz
• Max SPL: 110 dB
• Connectors: 1/4” JACK, XLR-F (stereo INPUT), XLR-M (stereo OUTPUT), XLR-M (LINK)
• Controls: LEVEL, HI-CUT & LO-CUT frequency selector, PHASE
• Construction: Vinyl laminated MDF cabinet with MDF front
• Cabinet Colour: Black
• Power Supply: 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
• Dimensions (W x H x D): 330 x 365 x 365 mm
• Weight: 15.3 kg

Made in China
